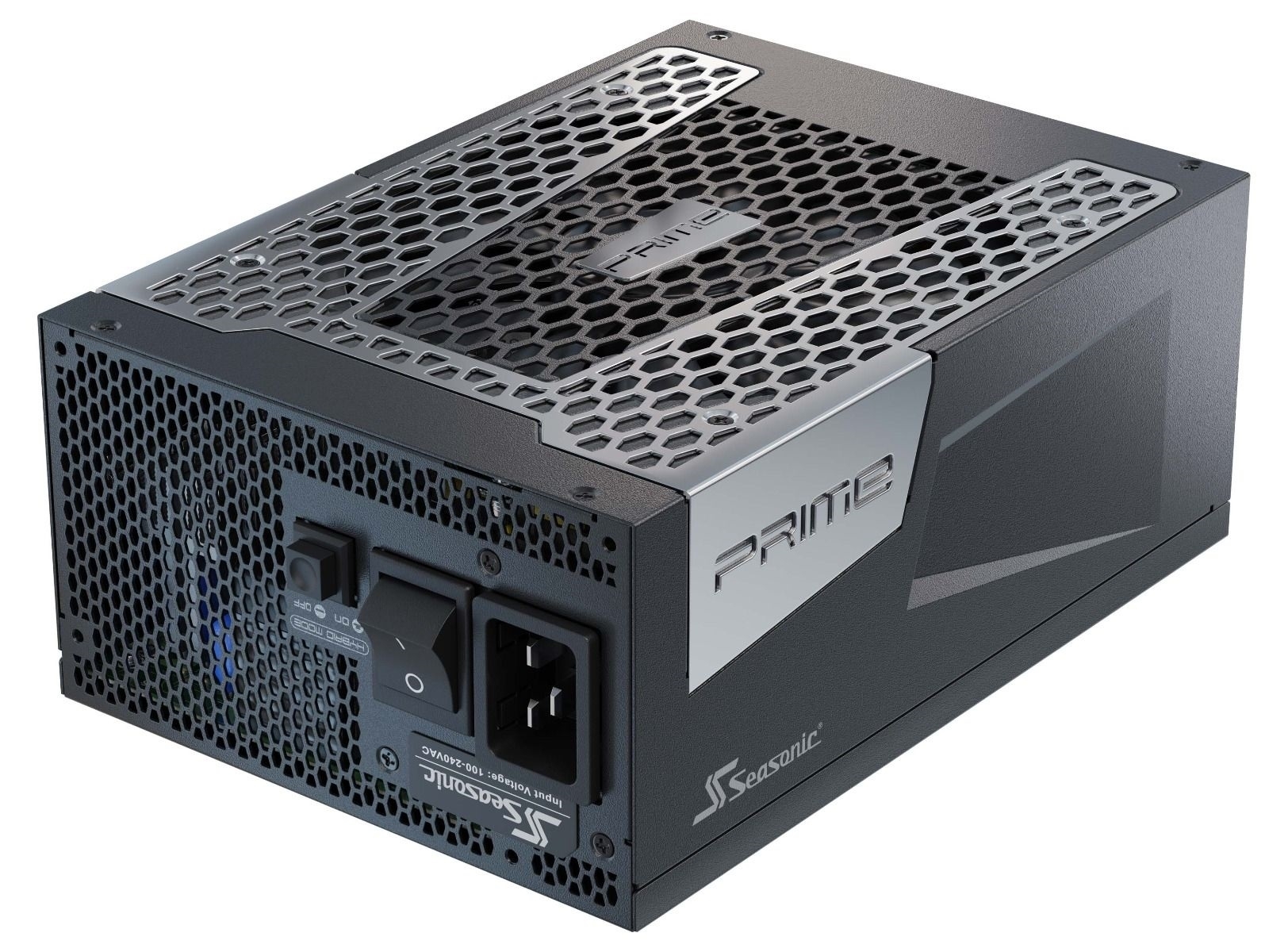

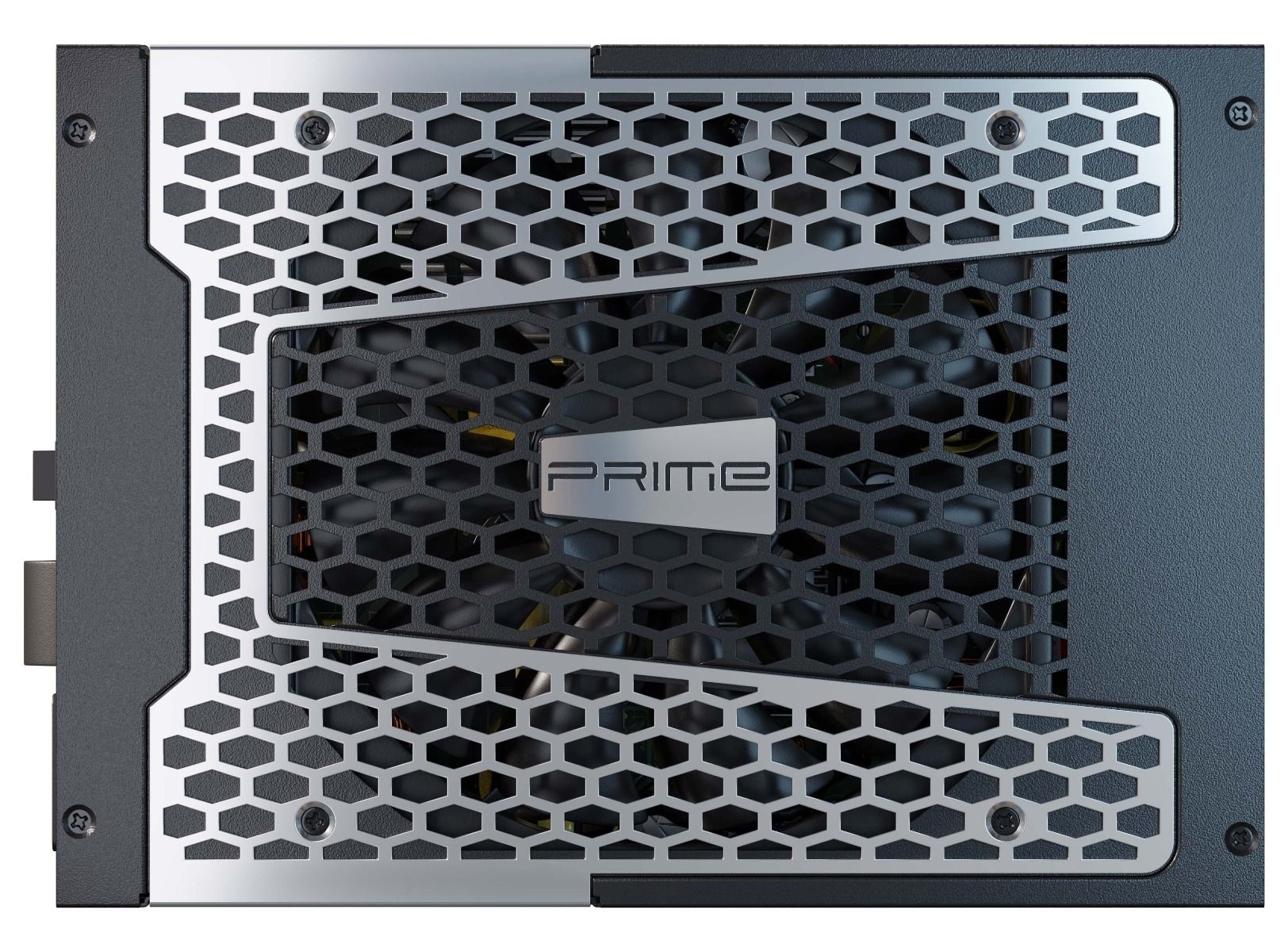

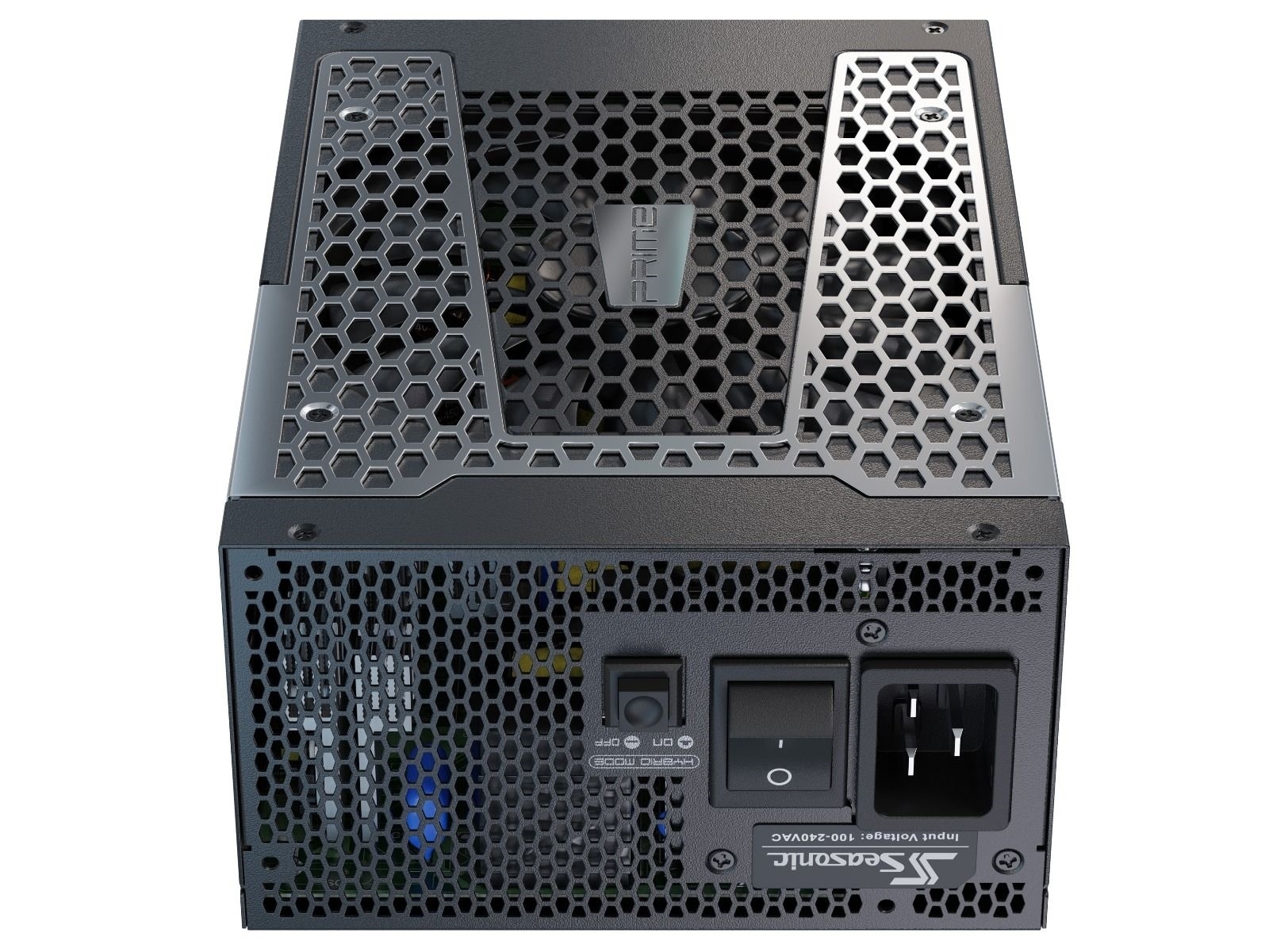

Seasonic Platinum Series PX-1600 1600W Fully Modular Power Supply – Energy Efficient PSU with ATX 30 Technology

Availability:

30 in stock
Power Output
1600W
Certification
80 PLUS Platinum
Modularity
Fully Modular
Form Factor
Intel ATX 12 V 3.0
Dimensions
210 mm (L) x 150 mm (W) x 86 mm (H)
Fan Size
135 mm
Fan Control
Premium Hybrid Fan Control
Fan Bearing
Fluid Dynamic Bearing
Life Expectancy
50,000 hours at 40 C
Operating Temperature
0 – 50 C
MTBF
150,000 hours
AC Input Voltage
100 V – 240 V
AC Input Current
15 – 10 A
AC Input Frequency
50 Hz – 60 Hz
DC Output +3.3V
25 A
DC Output +5V
25 A
DC Output +12V
133.3 A
DC Output -12V
0.5 A
DC Output +5VSB
3 A
Protection Features
OPP, OVP, UVP, OCP, OTP, SCP
Warranty
12 Years

$923.00 $1,154.95

30 in stock

FEATURE SUMMARY

  • 80 PLUS Platinum certified
  • ATX 3.0 and 16-Pin PCIe Gen 5 Cable (12VHPWR)
  • Micro Tolerance Load Regulation (0.5 %)
  • Cable-free Connection Design
  • Premium Hybrid Fan Control – Fanless until 40 % load
  • Multi-GPU setup
  • Gold plated connectors
  • Note: 16A 3-pin plug adaptor might be needed.
    • Technical Specifications
    80PLUS Platinum
    Cybenetics Efficiency Level TBA
    Cybenetics Noise Level TBA
    Form Factor Intel ATX 12 V 3.0
    Dimensions 210 mm (L) x 150 mm (W) x 86 mm (H)
    Fan Information Fan Size 135 mm
    Fan Control Premium Hybrid Fan Control
    Fan Bearing Fluid Dynamic Bearing
    Life Expectancy 50,000 hours at 40 C, 15 % – 65 % RH
    Cable Information Modularity Fully Modular
    Cable type Flat black cables
    Electrical Features Operating Temperature 0 – 50 C
    MTBF @ 25 C, excl. fan 150,000 hours
    AC Input Full Range
    Protection OPP, OVP, UVP, OCP, OTP, SCP
    Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
    Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
    Warranty 12 Years

    Power Output
    AC Input Voltage: 100 V – 240 V
    Current: 15 – 10 A
    Frequency: 50 Hz – 60 Hz
    DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
    Maximum Power 25 A 25 A 133.3 A 0.5 A 3 A
    125 W 1600 W 6 W 15 W
    Total Continuous Power 1600 W 115240Vac, 1300 W 100-240 Vac

    buy durable Seasonic PRIME PX-1600 1600W Platinum ATX 3.0 Fully Modular PSU online, Seasonic offers high quality Computer Accessories. Order now Seasonic Computer Accessories, buy best Computer Accessories products online

    SKU: V28-PSUSEA1600PDA3 Category:

    Based on 0 reviews

    0.0 overall
    0
    0
    0
    0
    0

    Be the first to review “Seasonic Platinum Series PX-1600 1600W Fully Modular Power Supply – Energy Efficient PSU with ATX 30 Technology”

    There are no reviews yet.

    Looking for a reliable power supply for your computer? Look no further than the Seasonic Platinum Series PX-1600 1600W Fully Modular Power Supply. This energy-efficient PSU features ATX 30 Technology, providing optimal performance for your system. The Seasonic Platinum Series PX-1600 is fully modular, allowing for easy customization and cable management. With a power output of 1600W, this power supply is perfect for high-demand systems, such as gaming PCs or workstations. When shopping for the Seasonic Platinum Series PX-1600, be sure to buy from Durable Cart. Durable Cart offers genuine products and ensures customer satisfaction. You can purchase the Seasonic Platinum Series PX-1600 online or order it through their website for added convenience. However, it's important to note that this power supply may be overkill for less demanding systems and may be more expensive compared to other options on the market. Additionally, the high power output may result in increased energy consumption and heat generation. Overall, the Seasonic Platinum Series PX-1600 is a top-notch power supply for users who require maximum power and efficiency from their system.
